Introduction
All barcode scanners that are working in emulate COM port. In the device manager they are seen as “Ports (COM & LPT). In the PosWeb you have to check the “Barcode use fixed port’ checkbox and insert the right port COM and a baud rate (commonly used baud rate is 9600).
Instruction
It is always better to configure the reader in COM mode than in keypad mode because:
- you don't need to configure any suffixes / prefixes
- you avoid potential problems with the keyboard
Configuration
- On the system, install the USB HSM drivers. They should be downloaded from: W:\Honeywell installations
- Install a program to configure the Ezconfig reader e.g. from here: https://drive.google.com/drive/folders/0B0V2mboTQ6w3andwcE5CRUhLS00
- After installation, you have a Chrome shortcut on the desktop. Close all Chrome windows and run the program.
- Select the connected device (the reader is to be connected via USB at this point) and then at the bottom → Configure Device
- Change the interface to USB serial CDC emulation, then click "Save to device", close the browser, detach / pin the reader.
- In POSweb, set the barcode scanner to Voyager, select the COM port under which it is connected (you can check it in the device manager or control panel) and save / restart DI.
Examples
- Set up for Skyfitness - Honeywell Voyager MS9520

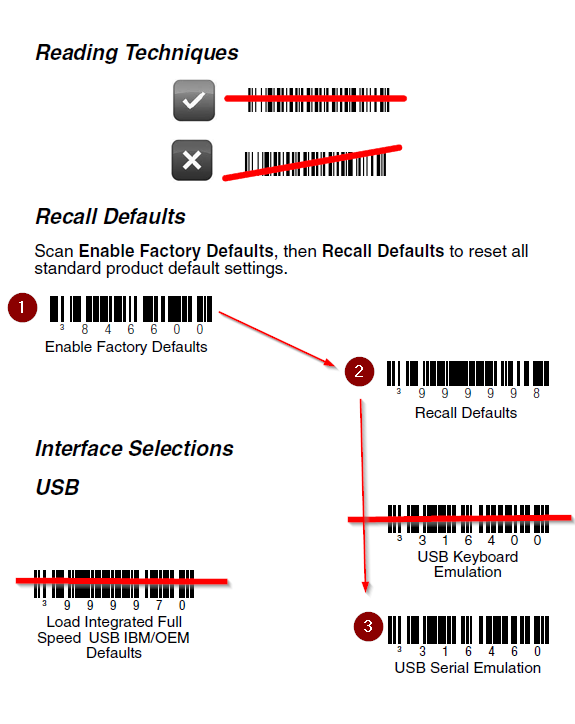

1. Restore the scanner to default settings by scanning individual barcodes in the following order:
-
Set up for all devices
- Start the Putty program - in the Windows services (services.msc) as administrator.
- Stop DeviceIntegrator service.

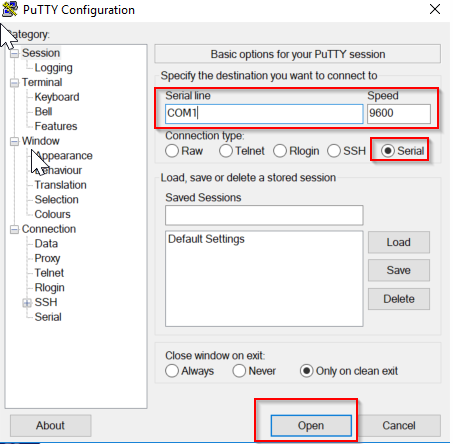

- Putty - start the application, set the COM port and speed e.g. 9600 and scan the barcodes that will appear in the console.

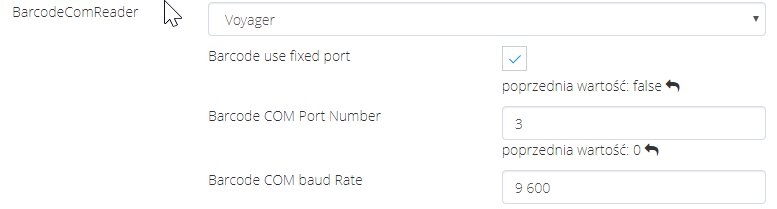

4. In the POSweb, set up as in the picture below - by selecting the appropriate COM port for our device.
