Introduction
The basic function of fingerprint scanners is to obtain an image of a person's fingerprint and match it with a club member's profile. In case your club uses this kind of access control devices, below you will find instruction on how to install it and set it up. If your club does not use fingerprint scanners at the entrance/exit, you can skip this article.
We recommend that you use the following type of this device Suprema Bio Mini scanner.
- This article describes the process of setup of fingerprint scanners: Suprema BioMini Plus and Suprema BioMini Slim 2,
- This article will be useful for PG Champion, Administrator and Club IT Department.
Instruction
How to set up Suprema BioMini Plus fingerprint scanner?
The same process applies to Suprema BioMini Plus2
1. Download the driver from this link and install it on your computer.
2. Open the device manager and search for Suprema BioMini Plus
3. Click on the Properties and select the Driver tab. Next, click on the Update Driver button and confirm with OK.

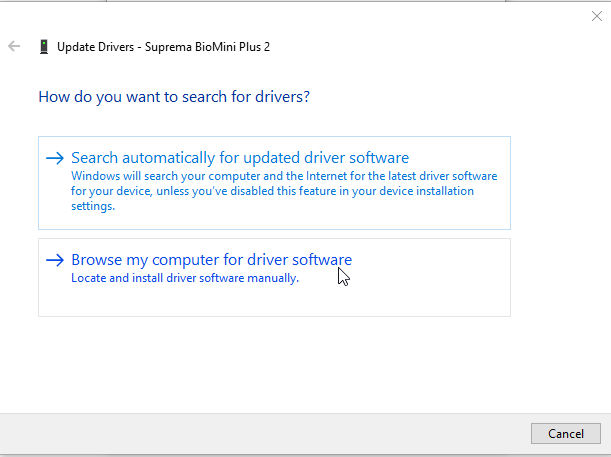

4. Select Browse my computer for driver software search method.

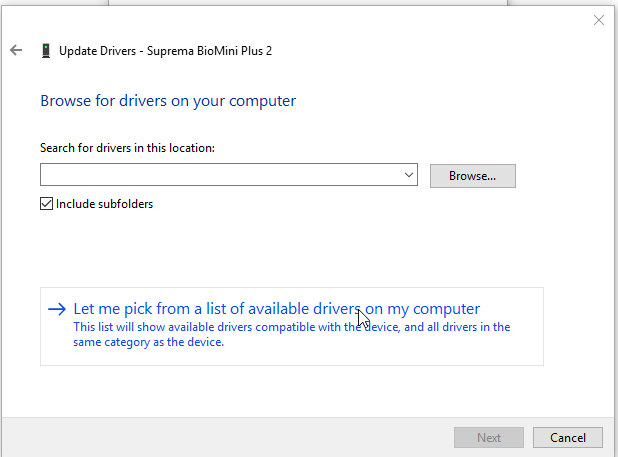

5. Select Let me pick from a list of available drivers on my computer. Click Next.

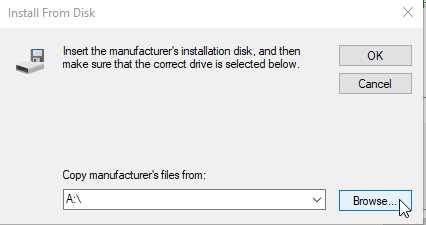

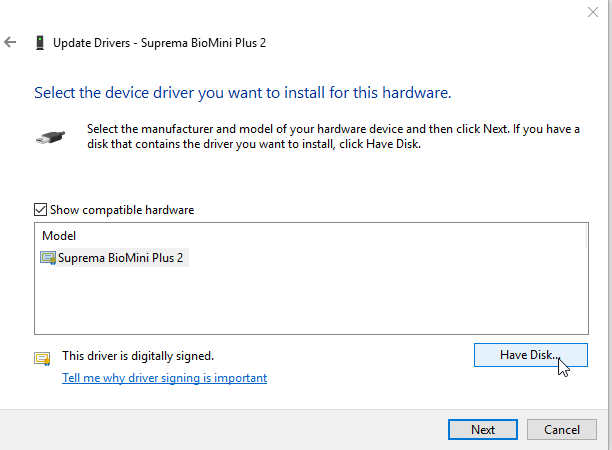

6. Select Have disk option. Click Next.

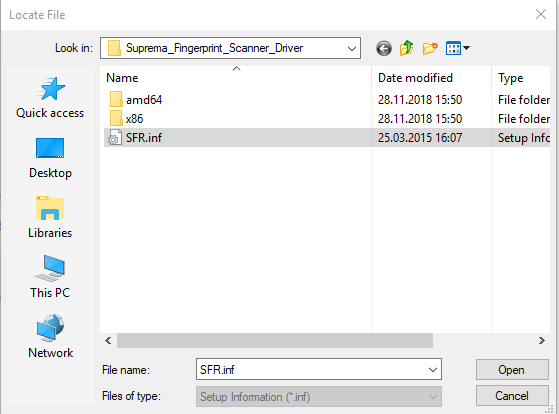

7. Click Browse and select the path.
Default path is C:\Program Files (x86)\Suprema\Suprema_Fingerprint_Scanner_Driver

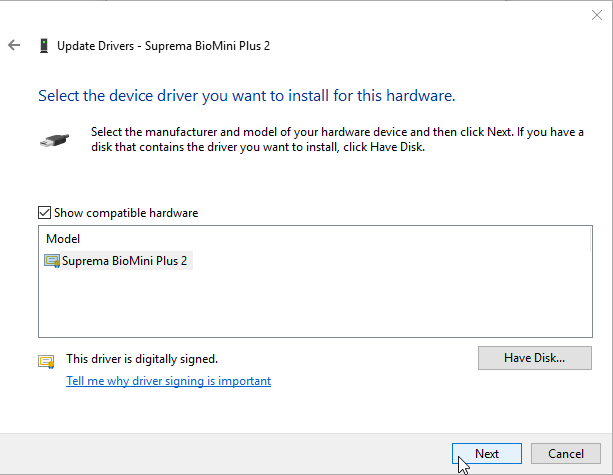

8. On the following screen, click on Next. And the set up is done!
Hints
The BioMini SDK requires the Microsoft redistributable package VC 2015. If you run on the error `Unable to load DLL 'x64\UFScanner.dll' or one of its dependencies` then make sure VC2015 redits is installed. You can download it from Microsoft site.
Have in mind that to make BioMini works with Access Server and make possible to assign fingerprints to members BioMini must be installed on the same computer as POSweb and AccessServer - it's impossible to use BioMini with Acces Server installed on the external computer, even in the same network.
