Introduction
This article describes the configuration of the Devices in Access logic in Perfect Gym Manager. Here you can set up the device based on the Access Logic configured beforehand, connect it with the device reader, or change the Gate according to the device position. In this article, you will find a description of the most popular access devices - Suprema and Gantner.
- This article shows step-by-step configuration for correct device setup.
- This article will be helpful to PG Champion, Club Owner, and IT Department.
Instruction
After the configuration of Access Logic definitions for your devices is done, it’s time to configure the Device itself. In this article you will find the configuration of the most popular readers - Suprema and Gantner. Here are the most important configuration steps that you need to perform, the rest of the fields are for more advanced settings.
To get to the Devices tab go to PGM -> Settings -> Access logic -> Devices.
On this screen, you will see the following information:
Device name
Club - to which club the device is related.
Access Logic Definition - definition connected with the device.
Guid - identification number used by access logic to distinguish devices.
Edit – allows you to edit the access logic.
••• - test or delete option

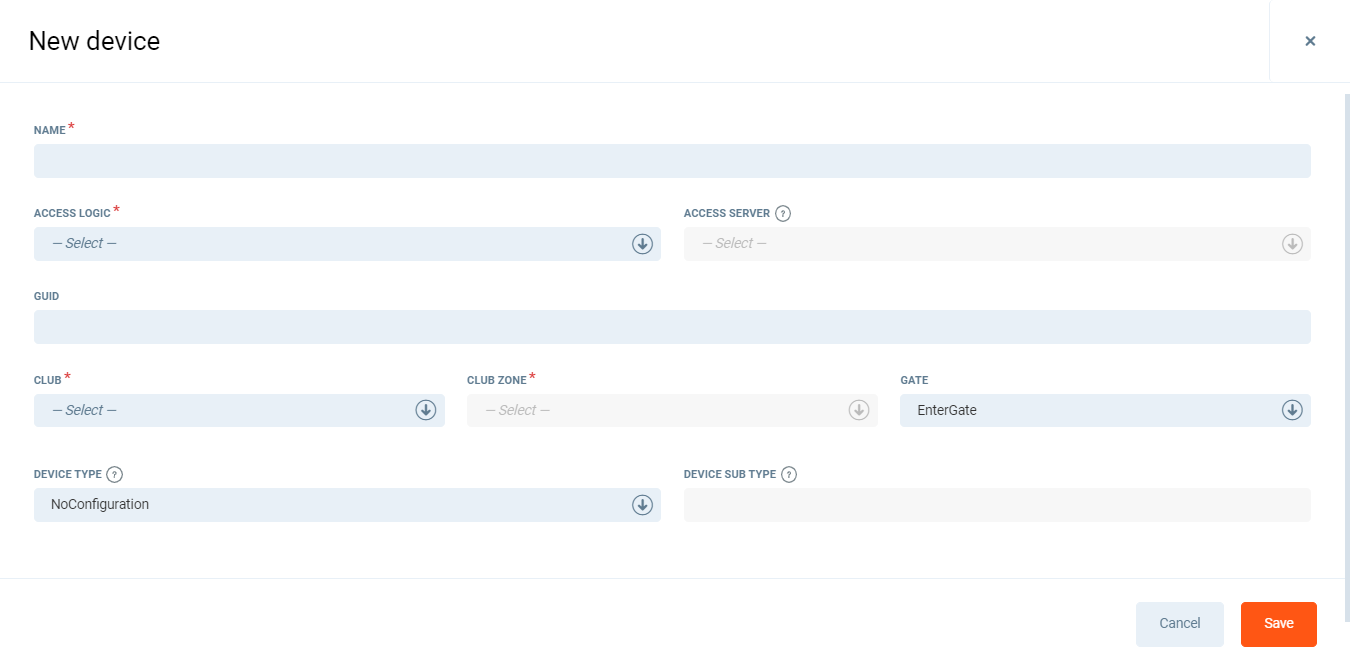

Click on the + New device button. In a new pop-up window fill in the appropriate data.
Name – enter the name for your device,
Access Logic – select the access logic created beforehand.
Select the proper Club and Club Zone in which your device is.
Gate - you can change the gate from Enter to Exit according to the device's position in your club.
Device Type – select the device type to configure it with the reader.
If you can’t see the Device Type list, contact the PG Support Team to enable AccessServer.OnlineConfiguration.Enabled setting.
The most popular types are SupremaV2NewSDKDevice and GantnerAccessDevice.

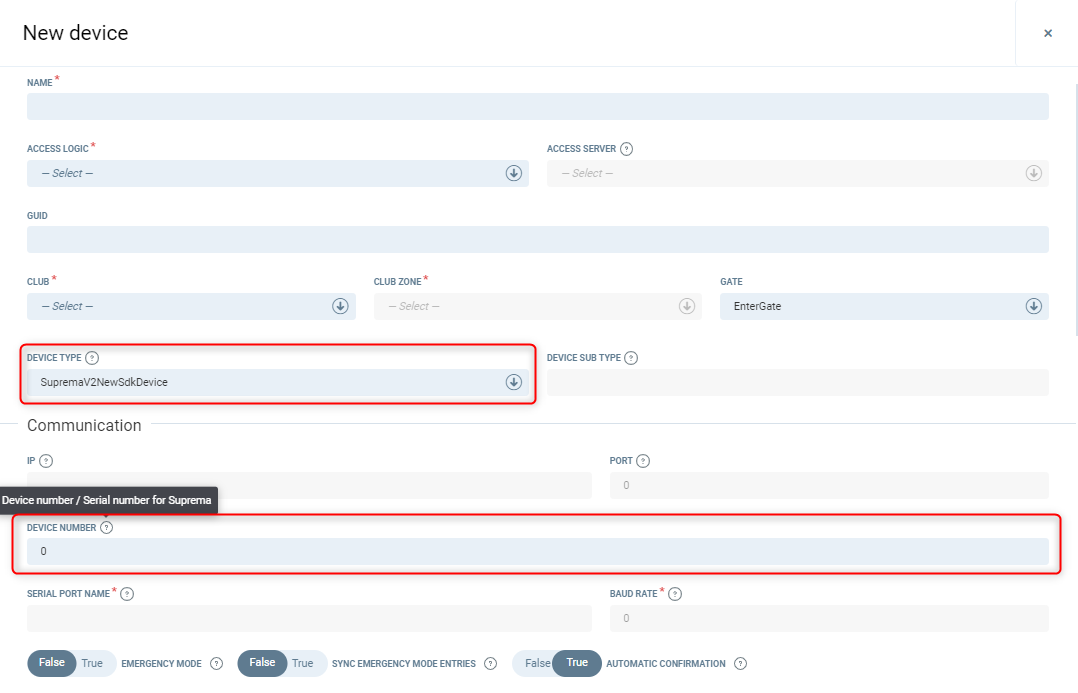

Suprema - Access Device
Suprema is connecting with the PG system using only Serial Number. The device must be in the same network as the Access Server computer.
Device Number - insert a serial number of the device.

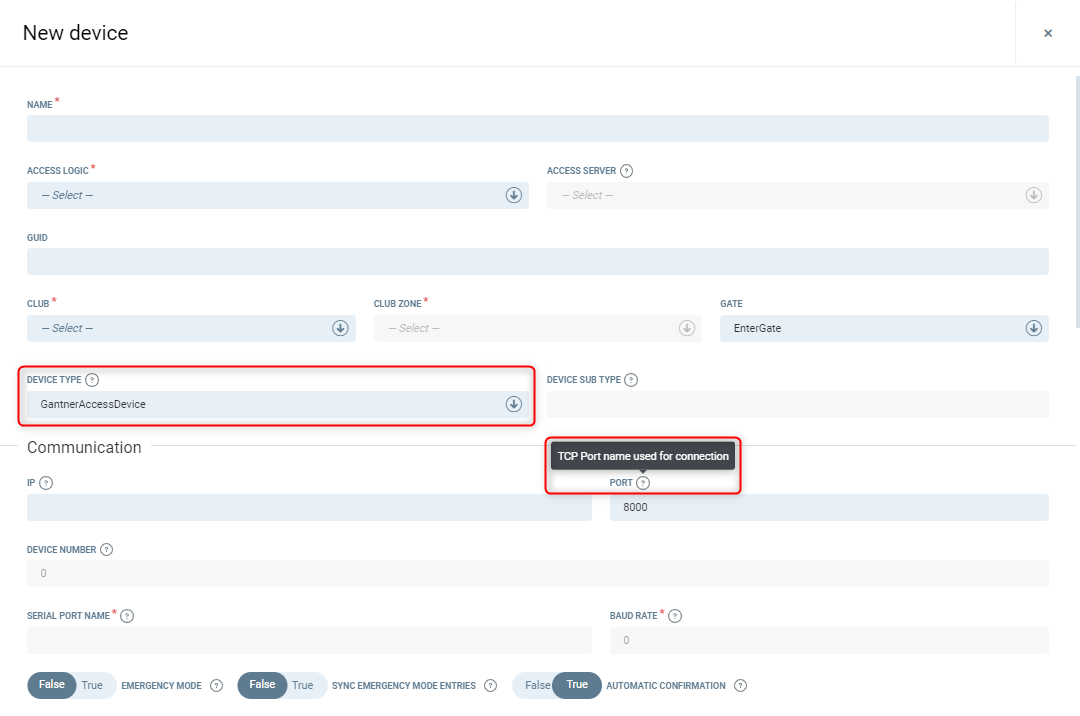

Gantner - Access Device
Gantner Device connects with the PG system using an IP Address and TCP port.
IP – enter the IP address of the device this has to be static (it means that it won’t change automatically).
TCP port - in most Gantner devices is set by default to 8000.
If you need more advanced settings while configuring your device, contact the PG Support Team.
